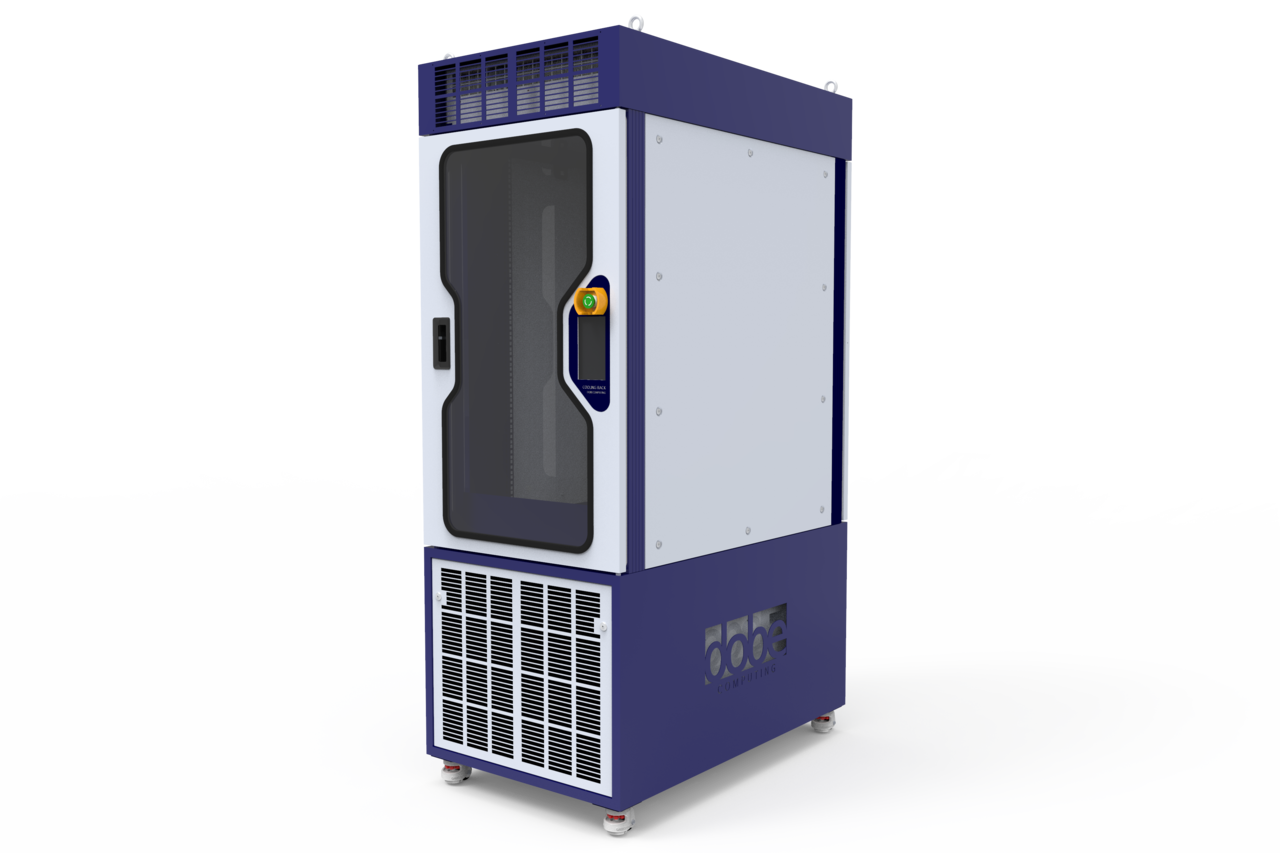

eZDatacenter ENTRY-ECO
- Application: Server-oriented
- Usage : Customers requiring carbon neutrality, such as government offices and large enterprises
Characteristic : (★★★★★ World Best Eco-friendly)
1. Heat Exchanger, an eco-friendly cooling unit, added to the top of the Entry model
2. Eco-friendly technology using only external cold air energy
3. model optimized for carbon dioxide reduction (90% power saving compared to HVAC)
4. Control and cooling redundancy ensures service survivability [Optional]
5. Sealed design minimizes failure due to external influences (dust, temperature, humidity, etc.)
6. Remote monitoring: temperature, humidity, power usage, etc.
7. Physical security: door opening after 6-digit password authentication
8. Sesimic isolator: protects the equipment from earthquakes [optional]
Rack | International standards | Compliance |
Rack Unit | 22 U | |
Cooling Unit | Cooling capacity | 18,000 BTU |
Temperature setting range | 68 ℉ ~ 93.2 ℉ | |
Use environment | Less than 113 ℉ degrees | |
Noise | 55 Decibels or less (depending on the environment used) | |
Heat Exchanger | More than 5,000 BTU | |
Controller | Rated voltage | 220V (110V) / Single Phase |
Current of consumption | Max 10A | |
Safety feature | Automatically open the door before the internal temperature reaches a critical level. | |
Option | Fire extinguisher/ UPS / KVM Switch / Remote Monitoring / Fault Tolerance / Seismic isolator | |
Dimension | 2,000(H) * 700 (W) * 1,150 (D) |
