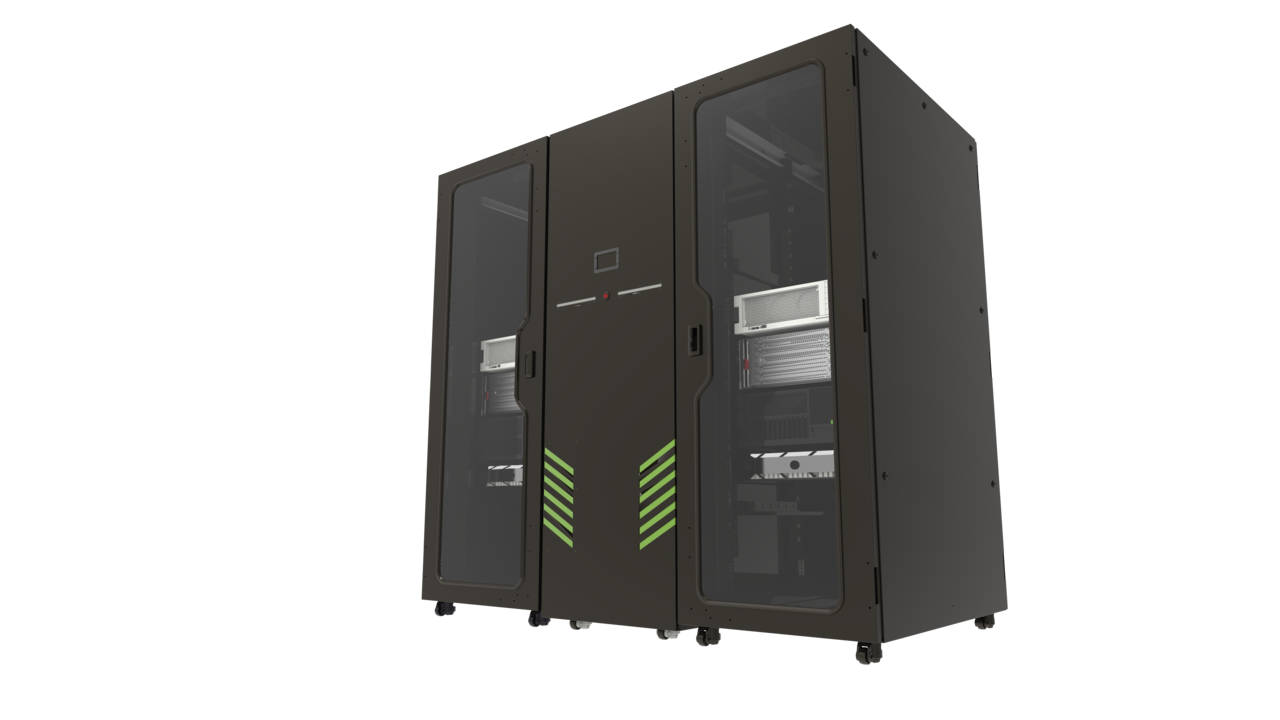

ENTERPRISE


  • Application: Suitable for High Reliability Service
  • Where to Use: unmanned facilities, Telcos, etc.


  • Characteristic : (★★★★★ World Best Technology)


        1.  Place cooling devices between rack and rack, and install continuously.

        2. We've applied power-saving technology that uses only external cold air energy.

           - Patented tech applications

        3. Suitable for CO2 reduction by government policy (90% reduction over HVAC)

        4. Redundant control and cooling systems for maximum reliability.(optional)

           - Patented tech applications



Rack
International standards
Compliance
Rack Unit84 U
Cooling Unit
Cooling capacity
30,000 BTU (Max 60,000 BTU)
Temperature setting range
68 ℉ ~ 93.2
Use environment
Less than 113 ℉ degrees
Heat ExchangerMore than 10,000 BTU
Controller
Rated voltage
380V / Three phases
Current of consumption
Max 20A (40A)
Safety feature
Open door if over temperature
Emergency switch
OptionFire extinguisher/ UPS / KVM Switch / Duct
Dimension2,000(H) * 2,100 (W) * 1,150 (D)
